PT120 – PT140 Piezo Tubes

High-Dynamics Operation with Low Loads

Radial and axial displacement
Subnanometer resolution
Ideal for OEM applications
Large choice of designs
Short lead times

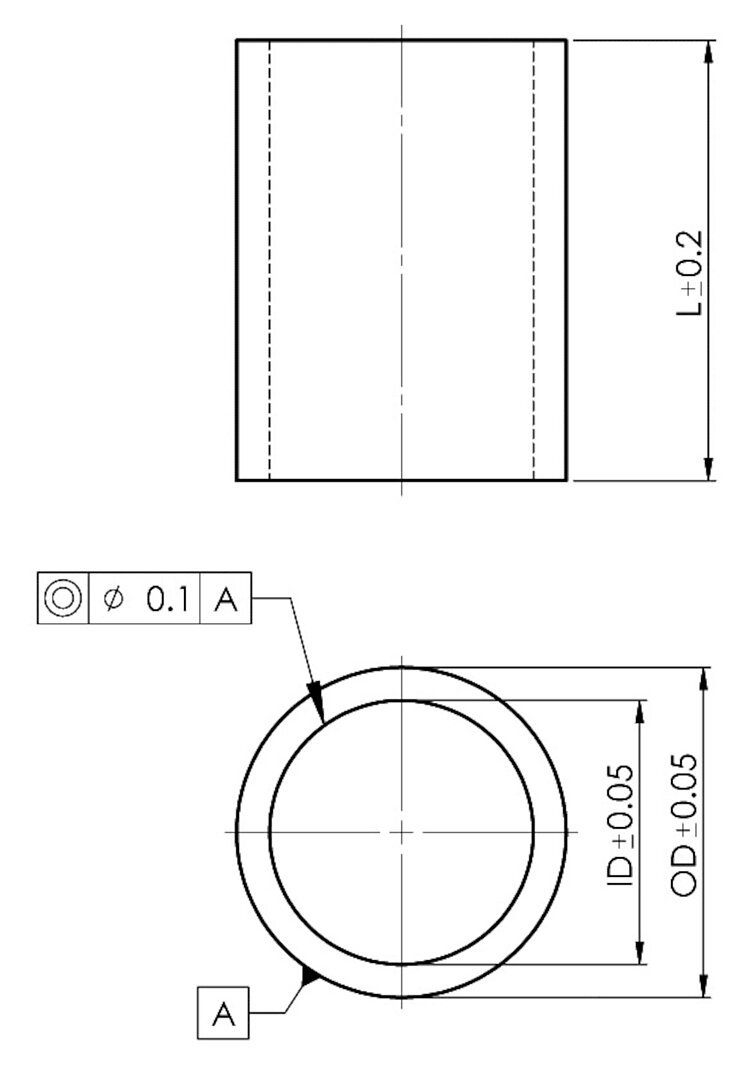

PT piezo tube actuators, dimensions in mm. Length L, outer diameter OD, and inner diameter ID see data table.

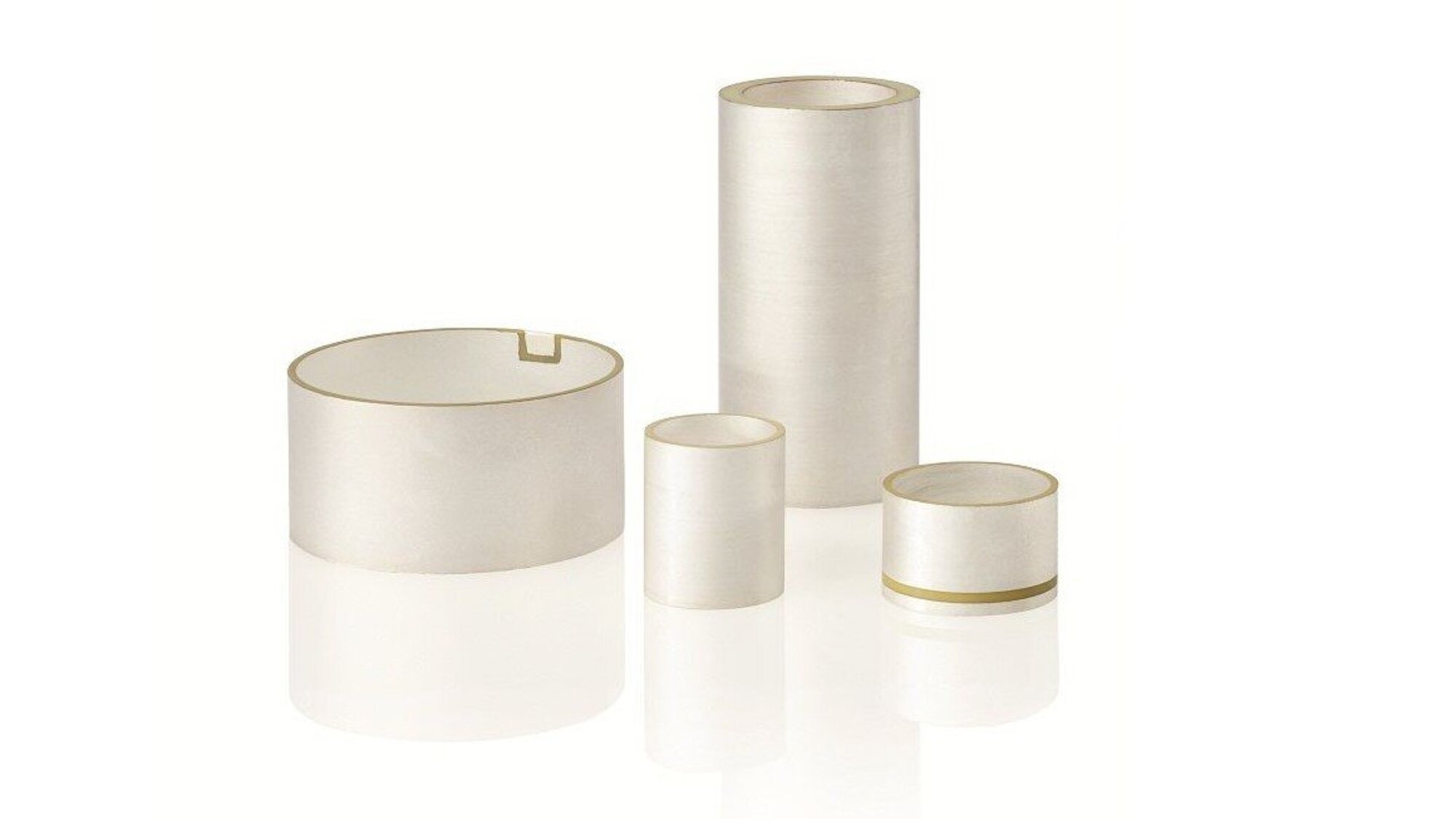

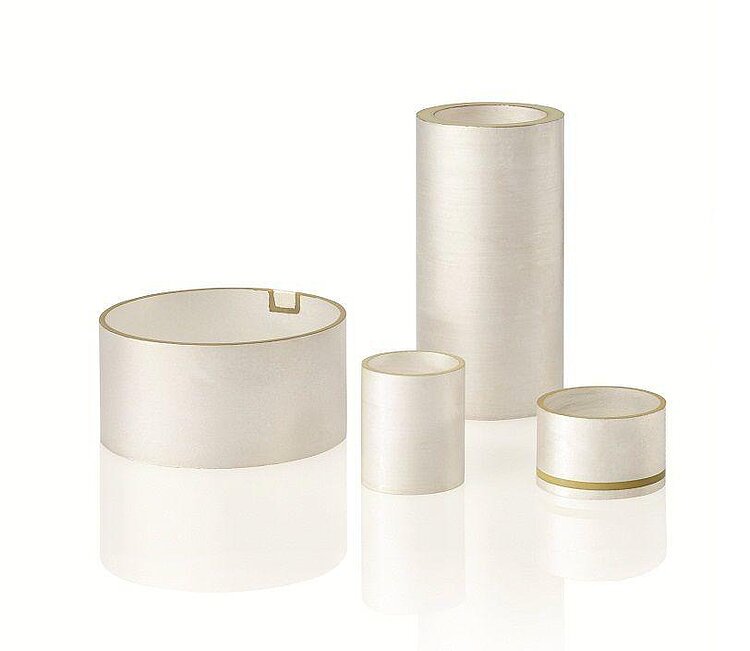

Piezo actuator / scanner tube

Operating voltage to 1000 V. Axial and diameter contraction, monolithic piezoceramic actuator with minimal geometric tolerances.

Custom designs with modified specifications

Materials
Operating voltage range, displacement
Tolerances
Applied sensors
Special high / low temperature versions
Segmentation of the electrodes, wrap-around electrodes, circumferential insulating borders
Non-magnetic

Possible dimensions

Length L max. 70 mm
Outer diameter OD 2 to 80 mm
Inner diameter ID 0.8 to 74 mm
Min. wall thickness 0.30 mm

Fields of application

Industry and research. For microdosing and micromanipulation.

データシートのダウンロード画面へ仕様へ

データシート

日付 / バージョン

2024-04-29

pdf - 243 KB

日付 / バージョン

2024-04-29

pdf - 247 KB

ダウンロード

Motion	PT120.00	PT130.90	PT130.10	PT130.20	PT130.50	PT140.70	Tolerance
Max. axial contraction	5 µm	9 µm	9 µm	9 µm	9 µm	15 µm
Max. diameter contraction	0.7 µm	0.9 µm	1.8 µm	3 µm	6 µm	12 µm
Drive Properties	PT120.00	PT130.90	PT130.10	PT130.20	PT130.50	PT140.70	Tolerance
Actuator type	Piezo scanner tube	Piezo scanner tube	Piezo scanner tube	Piezo scanner tube	Piezo scanner tube	Piezo scanner tube
Operating voltage	500 V	500 V	500 V	500 V	1000 V	1000 V	max.
Electrical capacitance	3 nF	12 nF	18 nF	36 nF	35 nF	70 nF	±20 %
Mechanical Properties	PT120.00	PT130.90	PT130.10	PT130.20	PT130.50	PT140.70	Tolerance
Cross section	annular	annular	annular	annular	annular	annular
Piezo material	PIC151	PIC151	PIC151	PIC151	PIC151	PIC151
Length	20 mm	30 mm	30 mm	30 mm	30 mm	40 mm	±0,2 mm
Outer diameter	2.2 mm	3.2 mm	6.35 mm	10 mm	20 mm	40 mm	±0,05 mm
Inner diameter	1 mm	2.2 mm	5.35 mm	9 mm	18 mm	38 mm	±0,05 mm
Miscellaneous	PT120.00	PT130.90	PT130.10	PT130.20	PT130.50	PT140.70	Tolerance
Recommended controllers / drivers	E-413.2 - E-413.6	E-413.2 - E-413.6	E-413.2 - E-413.6	E-413.2 - E-413.6	E-413.2 - E-413.6	E-413.2 - E-413.6

Electrical capacitance: Measured at 1 V_pp, 1 kHz, RT.

Maximum contraction at maximum operating voltage.

Inner electrode on positive potential.

Fired silver-plated electrodes inside and outside as standard.

Option: Outer electrode thin film (CuNi, Au).

Ask about custom designs!

At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.

データシートのダウンロード画面へダウンロード画面へ

データシート

日付 / バージョン

2024-04-29

pdf - 243 KB

日付 / バージョン

2024-04-29

pdf - 247 KB

ダウンロード

ドキュメント

Handling and Electrical Contacting of Piezo Components

日付 / バージョン

2019-02-12

pdf - 718 KB

日付 / バージョン

2019-02-12

pdf - 725 KB

見積/発注へ

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

PT120.00

Piezo scanner tube; piezo actuator drive; L 20 mm × OD 2.2 mm × ID 1 mm; 5 µm axial contraction; 0.7 µm diameter contraction

Add to quote list Remove from quote list

PT130.90

Piezo scanner tube; piezo actuator drive; L 30 mm × OD 3.2 mm × ID 2.2 mm; 9 µm axial contraction; 0.9 µm diameter contraction

Add to quote list Remove from quote list

PT130.10

Piezo scanner tube; piezo actuator drive; L 30 mm × OD 6.35 mm × ID 5.35 mm; 9 µm axial contraction; 1.8 µm diameter contraction

Add to quote list Remove from quote list

PT130.20

Piezo scanner tube; piezo actuator drive; L 30 mm × OD 10 mm × ID 9 mm; 9 µm axial contraction; 3 µm diameter contraction

Add to quote list Remove from quote list

PT130.50

Piezo scanner tube; piezo actuator drive; L 30 mm × OD 20 mm × ID 18 mm; 9 µm axial contraction; 6 µm diameter contraction

Add to quote list Remove from quote list

PT140.70

Piezo scanner tube; piezo actuator drive; L 40 mm × OD 40 mm × ID 38 mm; 15 µm axial contraction; 12 µm diameter contraction

Add to quote list Remove from quote list

Ask for custom design Go to quote list

担当者よりお問合せにつきまして、すぐにご連絡をさせて頂きます。

+81 44 280 7676 info@pi-japan.jp

お問い合わせ

PI Ceramic offers extensive service for both customized and standard products: from the selection of suitable materials to the development of application-oriented solutions. The dimensions of the piezo tubes can be selected within certain limits. Depending on the required specifications or application areas, modifications are possible with respect to contacting and coating, e.g., Parylene and other chemical coating procedures, or bonding. Non-magnetic variants for field strengths >1 T are also available.
